Garrett MS 3500 Maximum Security Walk-Through Metal Detector

Product Description

Item # 1167200

The Garrett MS 3500 Maximum Security walk-through metal detector from Blue Monster Prep is designed to stand up to the rugged demands of jails, prisons and other facilities requiring maximum security, and can withstand all types of weather conditions and rough handling. It also offers uniform coverage, excellent sensitivity, stability and noise rejection for more precise target evaluation.



Features

  • Specifically designed with reinforced, environmentally-durable materials to meet the needs and demands of prison facilities.

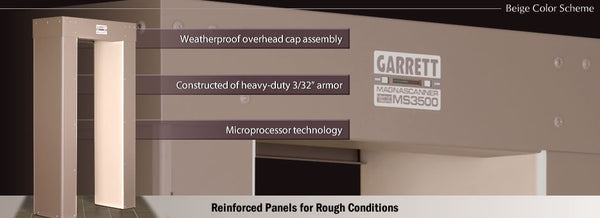

  • Weatherproof overhead cap assembly houses all electronics to prevent moisture penetration.

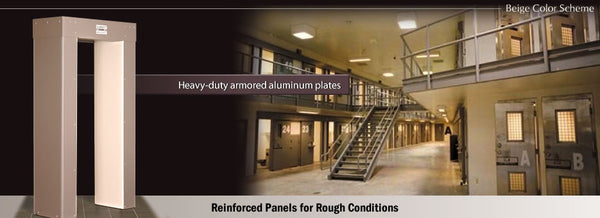

  • Constructed of heavy-duty 3/32" armor aluminum plates and protective corner edge protectors for maximum protection against physical abuse.

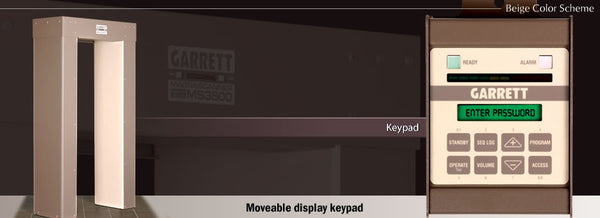

  • Moveable display keypad can be located inside the locked and weatherproof overhead cap assembly.
  • Microprocessor technology incorporated in detection and control circuitry offers greater sensitivity to weapons screening.
  • Automatic self-diagnostic function reports failures on the LCD.
  • Durable construction with quick assembly design.
  • Multiple coil design provides detector with three levels of ankle boost sensitivity.
  • User-friendly programming for precise control of the detector's settings.
  • 20 standard programs for multiple security applications.
There is no need to change software to change security applications.
  • Synchronization: Multiple channels permit several MT 5500s and other Garrett detectors to operate simultaneously in close proximity.

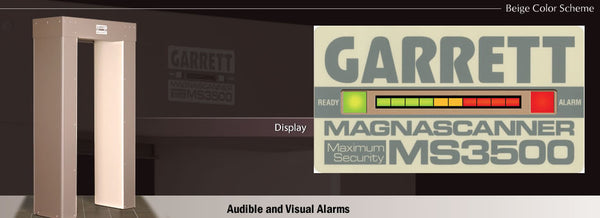

  • Alarms: ready light indicates unit is operational; alarm lights and audible alarms are activated when the target amount of metal is detected; LED bar graph indicates amplitude of alarm signal.
  • Tamper proof settings: Dual-level access codes required to set or change all sensitivity settings and detection programs; one level for use by supervisors in selecting programs and sensitivity and the other for initial set-up and overall control; non-resettable sequence code logs all changes made whenever sensitivity codes are accessed. An audible alarm reports unauthorized attempts at access.
  • Vandal Resistant Construction: All wiring protected by lockable cabinet. Access control panel may be positioned for easy viewing or locked in cabinet to prevent tampering.
  • Sequence Log: A non-resettable counter that indicates the number of attempts to access the MS 3500's adjustment menu.
  • Control Outputs: Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
  • Interference Suppression: 100% sensor coil Faraday shielding; special Garrett built-in circuitry for noise suppression and ignoring x-ray monitor.



Technical Specifications

  • Temperatures:
  • Operating: -4° F (-20° C) to +140° F (60° C)
  • Humidity to 95% non condensing
  • Storage: -40° F (-40° C) to 158° F (70° C)
  • Power: Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 14 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards.
  • Weatherproofing / Foreign Object Protection Standards:

Meets IP 31, IEC Standard. "Degrees of Protection provided by Enclosures", IEC 529.



Dimensions



Passageway Interior Size

Width: 30”

Height: 80”

Depth: 20”



Overall Exterior Size

Width: 50”

Height: 89”

Depth: 20”



Shipping Size (Top Box)

Width: 25”

Height: 55”

Depth: 7.5”



Shipping Size (Side Panel, Box 2)

Width: 25”

Height: 92.5”

Depth: 11”



Weight

189 lbs. (93.5 kg)



Shipping Weight

242 lbs. (119.7 kg)



*Oversize/Overweight shipping charges apply

$ 4,599.50
